Overview

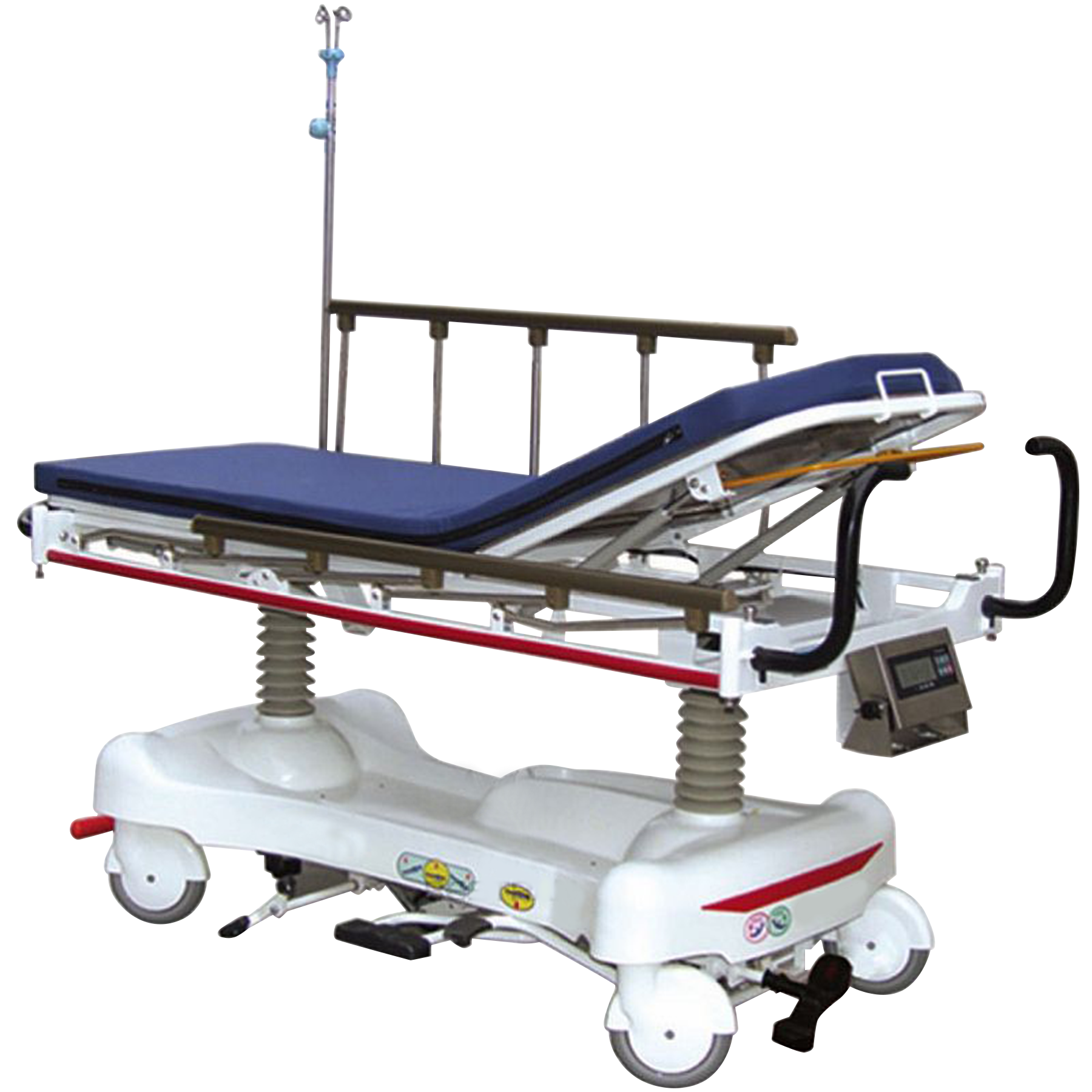

KHS-B100 is a functional stretcher with a provision of five movements namely backrest and footrest movement, height adjustment, trendelenburg and anti-trendelenburg position control. Features weight system for easy weighing reference. Back section is controlled by spring and manual control of footrest.

Specifications :

Trendelenburg	15 °
Variable height	630 to 950 mm
Anti-trendelenburg	15 °
Weight accuracy	0.02 or 0.05 kg
Weight capacity	150 kgs
Backrest upward angle	75 °
Footrest upward angle	45 °
Mattress thickness	80 mm
Dimensions	2100 mm × 850 mm × 630 - 950 mm

Features :

• - Aluminum alloy hand rails
• - Spring controlled back section, manually controlled foot rest
• - CPR handle at head section
• - Steel frame and bottom platform
• - Entire bed board with x-ray cassette tray
• - Rise and fall guide wheel
• - PU cover water proof mattress
• - Central locking system
• -

Applications :

Used to move patient in need of medical care, at hospitals and clinics and to lift the patient with spinal cord injury.
